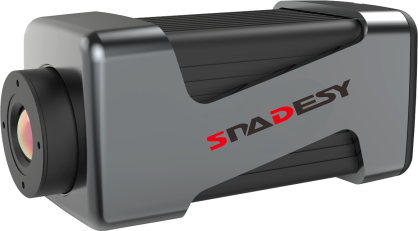

AT300 AT600 specification
AT300/AT600
Elevated Body Temperature
Thermal Imager
Hangzhou micron control technology Co.,Ltd
kevin@microncontrol.com
Thermal Imaging ODM Solution Provider
Key Features
Frequency 50Hz, Gigabit network: support realtime temperature data transmitting
Auto focus, fast and precise temperature measuring Spot/line/area/isotherm analysis Beautiful thermal imaging picture performance
Compact size: easy to install in small space
Support multiple protocols: TCP, UDP, ICMP, DHCP, RTSP
Patented intelligent compensated temperature measurement
algorithm: accuracy of ±0.3℃
|
Mode |
AT600 |
AT300 |
||
|
Specification |
||||
|
Detector |
VOx uncooled thermal FPA |
|||
|
Resolution |
640×512 |
384×288 |
||
|
|
Temperature Measurement |
|||
|
Measurement range |
0℃～+60℃ |
|||
|
Accuracy |
±0.3℃@ 33℃~42℃ |
|||
|
Fefresh rate |
25Hz |
50Hz |
||
|
Measurement tool |

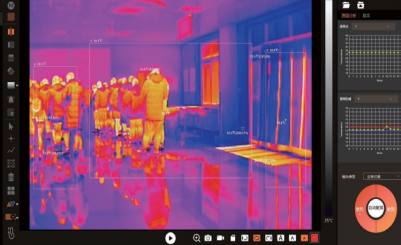

IE web to monitor the real time condition |
|||
|
High temperature alarm |
Through SDK can output alarm signal |
|||
|
|
Connector |
|||
|
Network Protocol |
TCP, UDP, ICMP, IGMP, DHCP, RTSP |
|||
|
Network connector |
RJ45 |
|||
|
|
Lens |
|||
|
Focal length |
7.8mm/10.6mm/13mm/15mm/25mm |
|||
|
Focus |
Auto focus/manual focus |
|||
|
|
Power supply |
|||
|
Network |
Power voltage |
10~36V DC |
||
|
@25℃ Typical consumption |
≤3.3W |
≤3W |
||
|
Power protection |
Support over-voltage, under-voltage, reverse connection protection |
|||
|
POE |
Support |
|||
|
|
Physical character |
|||
|
Dimension |
55×55×119(mm）(length×width×height） |
|||
|
|
Environment Adaptation |
|||
|
Working temperature |
-20℃～+70℃ |
|||
|
Storange temperature |
-45℃～+85℃ |
|||
|
Shock |
30g, 11ms, all axes |
|||
|
Vibration |
4.3grandom vibration, all axes |
|||
|
Humidity |
5~95%, non-condensing |
|||
|
|
Software Support |
|||
|
SDK |
Support |
|||
|
Professional analysis software |
Support |
|||
