Black Body Specification

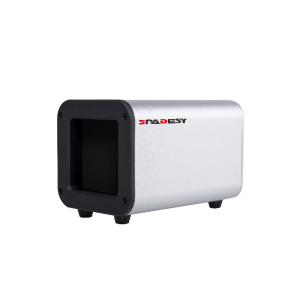

Black Body for Human Body Temperature Screening

Parameters	Description
Temperature range	30℃~50℃
Target diameter	72 mm × 72 mm
Temperature resolution	0.01℃
Accuracy	±0.2℃(@Factory calibration, ambient temperature 23 ℃ ± 5 ℃)
Stability	±0.15℃/10 min
Emissivity	Infrared camera set at 0.97
Radiation spectrum	8μm~14μm
Power	DC24V 90W
Size	L 180 mm* W 110 mm * H 110 mm
Net weight	About 1.4 Kg
Operating ambient temp	0℃~40℃/40℃（20~90）%RH
Install interface	Support vertical mounting, lifting mounting，wall mounting and universal tripod 1/4 interface quick installation.
